Inverted Pendulum#

../../../_images/inverted_pendulum.gif

This environment is part of the Mujoco environments. Please read that page first for general information.

Action Space

Box(-3.0, 3.0, (1,), float32)

Observation Shape

(4,)

Observation High

[inf inf inf inf]

Observation Low

[-inf -inf -inf -inf]

Import

gym.make("InvertedPendulum-v4")

Description#

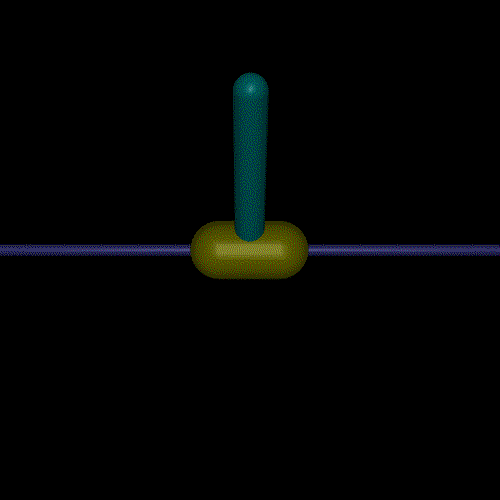

This environment is the cartpole environment based on the work done by Barto, Sutton, and Anderson in “Neuronlike adaptive elements that can solve difficult learning control problems”, just like in the classic environments but now powered by the Mujoco physics simulator - allowing for more complex experiments (such as varying the effects of gravity). This environment involves a cart that can moved linearly, with a pole fixed on it at one end and having another end free. The cart can be pushed left or right, and the goal is to balance the pole on the top of the cart by applying forces on the cart.

Action Space#

The agent take a 1-element vector for actions.

The action space is a continuous (action) in [-3, 3], where action represents the numerical force applied to the cart (with magnitude representing the amount of force and sign representing the direction)

Num

Action

Control Min

Control Max

Name (in corresponding XML file)

Joint

Unit

0

Force applied on the cart

-3

3

slider

slide

Force (N)

Observation Space#

The state space consists of positional values of different body parts of the pendulum system, followed by the velocities of those individual parts (their derivatives) with all the positions ordered before all the velocities.

The observation is a ndarray with shape (4,) where the elements correspond to the following:

Num

Observation

Min

Max

Name (in corresponding XML file)

Joint

Unit

0

position of the cart along the linear surface

-Inf

Inf

slider

slide

position (m)

1

vertical angle of the pole on the cart

-Inf

Inf

hinge

hinge

angle (rad)

2

linear velocity of the cart

-Inf

Inf

slider

slide

velocity (m/s)

3

angular velocity of the pole on the cart

-Inf

Inf

hinge

hinge

anglular velocity (rad/s)

Rewards#

The goal is to make the inverted pendulum stand upright (within a certain angle limit) as long as possible - as such a reward of +1 is awarded for each timestep that the pole is upright.

Starting State#

All observations start in state (0.0, 0.0, 0.0, 0.0) with a uniform noise in the range of [-0.01, 0.01] added to the values for stochasticity.

Episode End#

The episode ends when any of the following happens:

  1. Truncation: The episode duration reaches 1000 timesteps.

  2. Termination: Any of the state space values is no longer finite.

  3. Termination: The absolutely value of the vertical angle between the pole and the cart is greater than 0.2 radian.

Arguments#

No additional arguments are currently supported.

env = gym.make('InvertedPendulum-v4')

There is no v3 for InvertedPendulum, unlike the robot environments where a v3 and beyond take gym.make kwargs such as xml_file, ctrl_cost_weight, reset_noise_scale etc.

Version History#

  • v4: all mujoco environments now use the mujoco bindings in mujoco>=2.1.3

  • v3: support for gym.make kwargs such as xml_file, ctrl_cost_weight, reset_noise_scale etc. rgb rendering comes from tracking camera (so agent does not run away from screen)

  • v2: All continuous control environments now use mujoco_py >= 1.50

  • v1: max_time_steps raised to 1000 for robot based tasks (including inverted pendulum)

  • v0: Initial versions release (1.0.0)
