Cart Pole#

../../../_images/cart_pole.gif

This environment is part of the Classic Control environments. Please read that page first for general information.

Action Space

Discrete(2)

Observation Shape

(4,)

Observation High

[4.8 inf 0.42 inf]

Observation Low

[-4.8 -inf -0.42 -inf]

Import

gym.make("CartPole-v1")

Description#

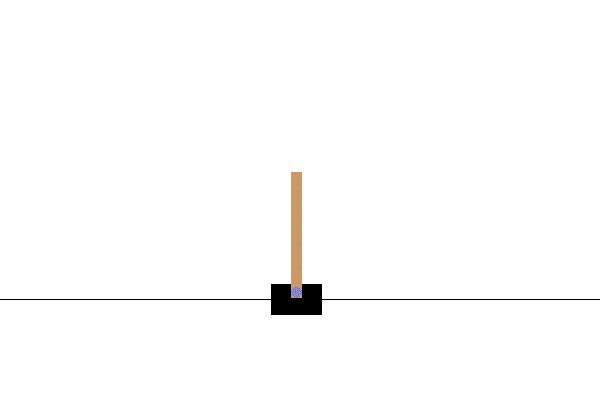

This environment corresponds to the version of the cart-pole problem described by Barto, Sutton, and Anderson in “Neuronlike Adaptive Elements That Can Solve Difficult Learning Control Problem”. A pole is attached by an un-actuated joint to a cart, which moves along a frictionless track. The pendulum is placed upright on the cart and the goal is to balance the pole by applying forces in the left and right direction on the cart.

Action Space#

The action is a ndarray with shape (1,) which can take values {0, 1} indicating the direction of the fixed force the cart is pushed with.

Num

Action

0

Push cart to the left

1

Push cart to the right

Note: The velocity that is reduced or increased by the applied force is not fixed and it depends on the angle the pole is pointing. The center of gravity of the pole varies the amount of energy needed to move the cart underneath it

Observation Space#

The observation is a ndarray with shape (4,) with the values corresponding to the following positions and velocities:

Num

Observation

Min

Max

0

Cart Position

-4.8

4.8

1

Cart Velocity

-Inf

Inf

2

Pole Angle

~ -0.418 rad (-24°)

~ 0.418 rad (24°)

3

Pole Angular Velocity

-Inf

Inf

Note: While the ranges above denote the possible values for observation space of each element, it is not reflective of the allowed values of the state space in an unterminated episode. Particularly:

  • The cart x-position (index 0) can be take values between (-4.8, 4.8), but the episode terminates if the cart leaves the (-2.4, 2.4) range.

  • The pole angle can be observed between (-.418, .418) radians (or ±24°), but the episode terminates if the pole angle is not in the range (-.2095, .2095) (or ±12°)

Rewards#

Since the goal is to keep the pole upright for as long as possible, a reward of +1 for every step taken, including the termination step, is allotted. The threshold for rewards is 475 for v1.

Starting State#

All observations are assigned a uniformly random value in (-0.05, 0.05)

Episode End#

The episode ends if any one of the following occurs:

  1. Termination: Pole Angle is greater than ±12°

  2. Termination: Cart Position is greater than ±2.4 (center of the cart reaches the edge of the display)

  3. Truncation: Episode length is greater than 500 (200 for v0)

Arguments#

gym.make('CartPole-v1')

No additional arguments are currently supported.
